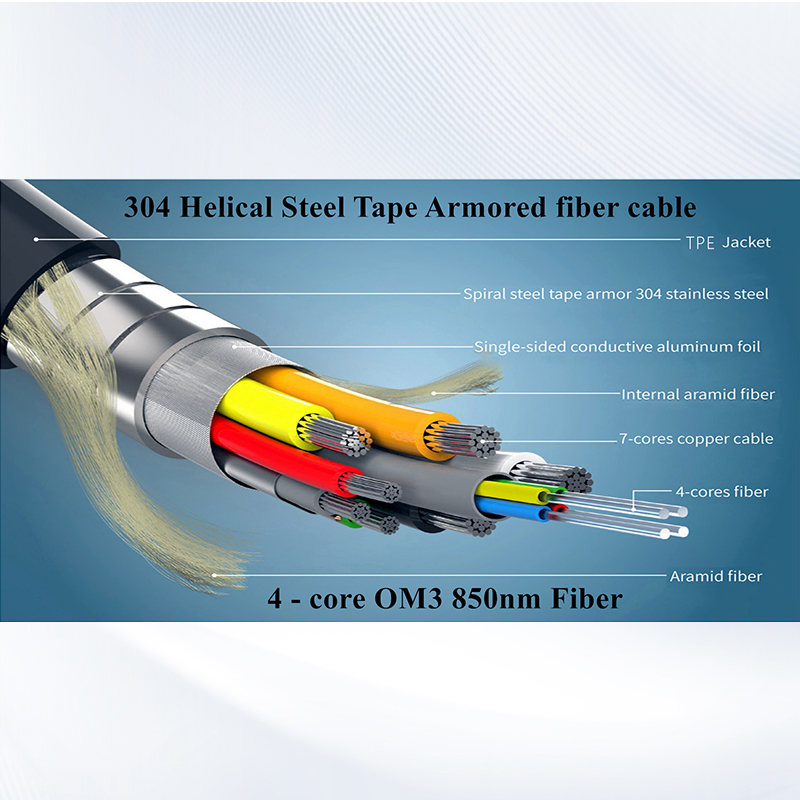

1. Using OM3 850nm optical fiber, long-distance transmission of HDMI2.1 signal without attenuation (Max150,).
2. Using imported aramid fiber to enhance the tensile strength of the optical cable, it is more suitable for use as a long-distance pulling optical cable.
3. Using spiral steel belt armored protective layer, the optical cable has excellent pressure resistance, and also has excellent flexibility and bending performance.
4. Using TPE outer sheath, it is resistant to sunlight and ultraviolet rays, acid, alkali, oil, etc., and fire retardant, so that the cable can meet the harsh environment, with high safety protection and stability. Suitable for engineering wiring.

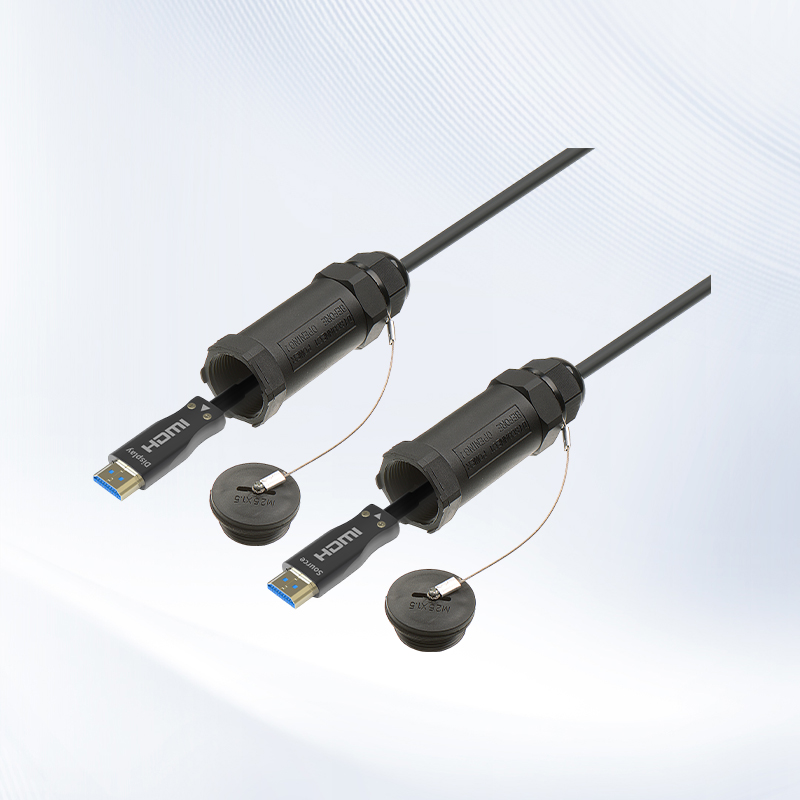

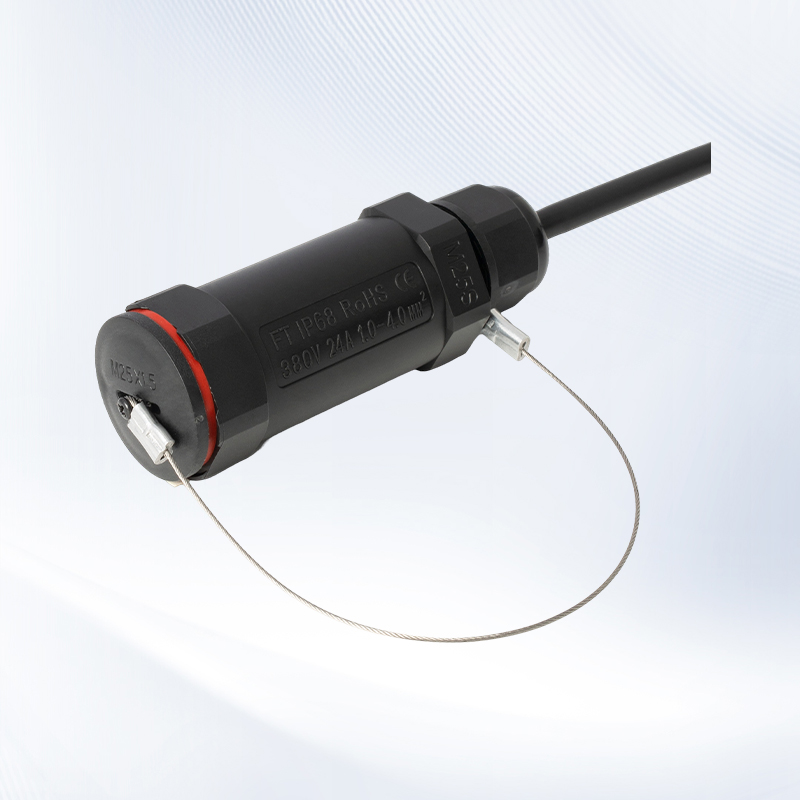

5. Protective shell characteristics: It has good waterproof function to prevent outdoor rainwater from entering the connector and causing electrical problems. It has good wire pulling function, and will not damage the optical fiber and copper wire inside the connector when pulling the wire.
Applicable scenarios:
1. High-definition long-distance video conferencing, high-quality image transmission
2. Large-screen multimedia display control system
3. Remote flat-panel TV, spliced TV wall display
4. Medical image display and high-definition projection system
5. Villa high-definition video monitoring
6. Large hotels, classrooms, large outdoor advertising screens
7. Public security high-definition camera images
8. Large hotels, families, schools monitoring, security
9. Aviation aircraft video imaging system
10. Subway, airport. Ferry, shopping center, etc. information delivery
11. Home theater
12. Carry out application demonstrations based on ultra-high-definition video in the fields of culture, education and entertainment, security monitoring, medical health, intelligent transportation
13. Industrial manufacturing, etc.
